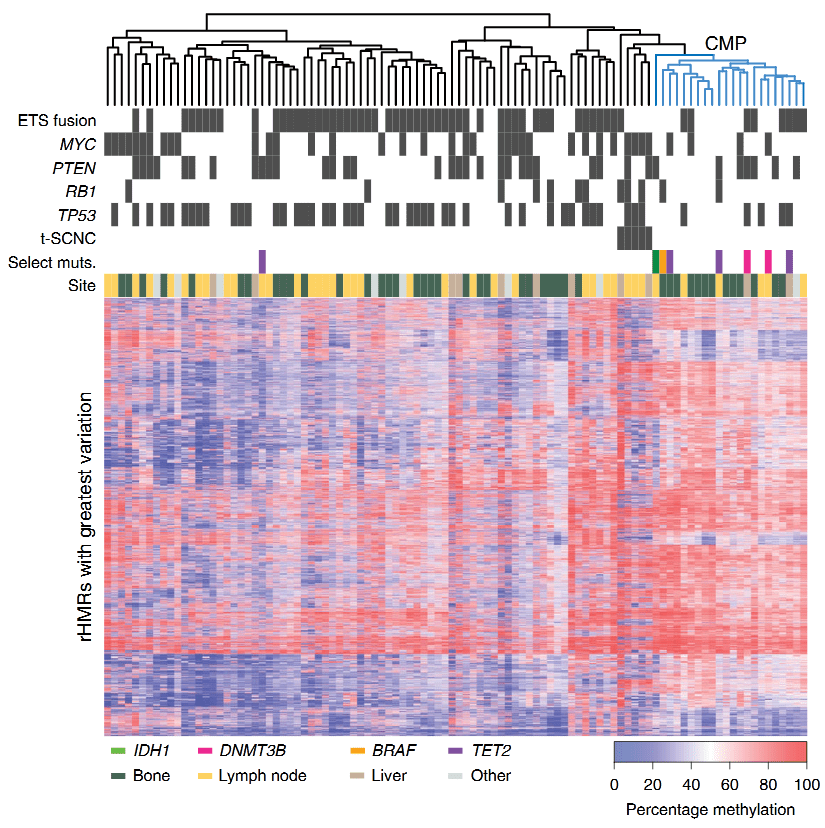

Heat map of sample mutation information plus methylation
The part of the heat map function written by the author himself can be called directly after drawing
# Plots Figure 1B
heatmap.3 = function(x,
showHeatmap=TRUE,
Rowv = TRUE, Colv = if (symm) "Rowv" else TRUE,
distfun = dist,
hclustfun = hclust,
dendrogram = c("both", "row", "column", "none"),
symm = FALSE,
scale = c("none","row", "column"),
na.rm = TRUE,
revC = identical(Colv,"Rowv"),
add.expr,
breaks,
symbreaks = max(x < 0, na.rm = TRUE) || scale != "none",
col = "heat.colors",
colsep,
rowsep,
sepcolor = "white",
sepwidth = c(0.05, 0.05),
cellnote,
notecex = 1,
notecol = "cyan",
na.color = par("bg"),
trace = c("none", "column","row", "both"),
tracecol = "cyan",
hline = median(breaks),
vline = median(breaks),
linecol = tracecol,
margins = c(5,5),
ColSideColors,
RowSideColors,
side.height.fraction=0.3,
cexRow = 0.2 + 1/log10(nr),
cexCol = 0.2 + 1/log10(nc),
labRow = NULL,
labCol = NULL,
key = TRUE,
keysize = 1.5,
density.info = c("none", "histogram", "density"),
denscol = tracecol,
symkey = max(x < 0, na.rm = TRUE) || symbreaks,
densadj = 0.25,
main = NULL,
xlab = NULL,
ylab = NULL,
lmat = NULL,
lhei = NULL,
lwid = NULL,
ColSideColorsSize = 1,
RowSideColorsSize = 1,
KeyValueName="Value",...){
invalid = function (x) {
if (missing(x) || is.null(x) || length(x) == 0)
return(TRUE)
if (is.list(x))
return(all(sapply(x, invalid)))
else if (is.vector(x))
return(all(is.na(x)))
else return(FALSE)
}
x = as.matrix(x)
scale01 = function(x, low = min(x), high = max(x)) {
x = (x - low)/(high - low)
x
}
retval = list()
if (symm && missing(scale) ){
scale = "none"
}else{
scale = match.arg(scale)
}
dendrogram = match.arg(dendrogram)
trace = match.arg(trace)
density.info = match.arg(density.info)
if (length(col) == 1 && is.character(col) ){
col = get(col, mode = "function")
}
if (!missing(breaks) && (scale != "none")){
warning("Using scale=\"row\" or scale=\"column\" when breaks are",
"specified can produce unpredictable results.", "Please consider using only one or the other.")
}
if (is.null(Rowv) || is.na(Rowv)){
Rowv = FALSE
}
if (is.null(Colv) || is.na(Colv)){
Colv = FALSE
}
else if (Colv == "Rowv" && !isTRUE(Rowv)){
Colv = FALSE
}
di = dim(x)
if (length(di) != 2 || !is.numeric(x)){
stop("`x' must be a numeric matrix")
}
nr = di[1]
nc = di[2]
if (nr <= 1 || nc <= 1)
stop("`x' must have at least 2 rows and 2 columns")
if (!is.numeric(margins) || length(margins) != 2){
stop("`margins' must be a numeric vector of length 2")
}
if (missing(cellnote)){
cellnote = matrix("", ncol = ncol(x), nrow = nrow(x))
}
if (!inherits(Rowv, "dendrogram")) {
if (((!isTRUE(Rowv)) || (is.null(Rowv))) && (dendrogram %in%
c("both", "row"))) {
if (is.logical(Colv) && (Colv)){
dendrogram = "column"
}else{
dedrogram = "none"
}
warning("Discrepancy: Rowv is FALSE, while dendrogram is `",
dendrogram, "'. Omitting row dendogram.")
}
}
if (!inherits(Colv, "dendrogram")) {
if (((!isTRUE(Colv)) || (is.null(Colv))) && (dendrogram %in%
c("both", "column"))) {
if (is.logical(Rowv) && (Rowv))
dendrogram = "row"
else dendrogram = "none"
warning("Discrepancy: Colv is FALSE, while dendrogram is `",
dendrogram, "'. Omitting column dendogram.")
}
}
if (inherits(Rowv, "dendrogram")) {
ddr = Rowv
rowInd = order.dendrogram(ddr)
}
else if (is.integer(Rowv)) {
hcr = hclustfun(distfun(x))
ddr = as.dendrogram(hcr)
ddr = reorder(ddr, Rowv)
rowInd = order.dendrogram(ddr)
if (nr != length(rowInd))
stop("row dendrogram ordering gave index of wrong length")
}
else if (isTRUE(Rowv)) {
Rowv = rowMeans(x, na.rm = na.rm)
hcr = hclustfun(distfun(x))
ddr = as.dendrogram(hcr)
ddr = reorder(ddr, Rowv)
rowInd = order.dendrogram(ddr)
if (nr != length(rowInd))
stop("row dendrogram ordering gave index of wrong length")
}
else {
rowInd = nr:1
}
if (inherits(Colv, "dendrogram")) {
ddc = Colv
colInd = order.dendrogram(ddc)
}
else if (identical(Colv, "Rowv")) {
if (nr != nc)
stop("Colv = \"Rowv\" but nrow(x) != ncol(x)")
if (exists("ddr")) {
ddc = ddr
colInd = order.dendrogram(ddc)
}
else colInd = rowInd
}
else if (is.integer(Colv)) {
hcc = hclustfun(distfun(if (symm)
x
else t(x)))
ddc = as.dendrogram(hcc)
ddc = reorder(ddc, Colv)
colInd = order.dendrogram(ddc)
if (nc != length(colInd))
stop("column dendrogram ordering gave index of wrong length")
}
else if (isTRUE(Colv)) {
Colv = colMeans(x, na.rm = na.rm)
hcc = hclustfun(distfun(if (symm)
x
else t(x)))
ddc = as.dendrogram(hcc)
ddc = reorder(ddc, Colv)
colInd = order.dendrogram(ddc)
if (nc != length(colInd))
stop("column dendrogram ordering gave index of wrong length")
}
else {
colInd = 1:nc
}
retval$rowInd = rowInd
retval$colInd = colInd
retval$call = match.call()
x = x[rowInd, colInd]
x.unscaled = x
cellnote = cellnote[rowInd, colInd]
if (is.null(labRow))
labRow = if (is.null(rownames(x)))
(1:nr)[rowInd]
else rownames(x)
else labRow = labRow[rowInd]
if (is.null(labCol))
labCol = if (is.null(colnames(x)))
(1:nc)[colInd]
else colnames(x)
else labCol = labCol[colInd]
if (scale == "row") {
retval$rowMeans = rm = rowMeans(x, na.rm = na.rm)
x = sweep(x, 1, rm)
retval$rowSDs = sx = apply(x, 1, sd, na.rm = na.rm)
x = sweep(x, 1, sx, "/")
}
else if (scale == "column") {
retval$colMeans = rm = colMeans(x, na.rm = na.rm)
x = sweep(x, 2, rm)
retval$colSDs = sx = apply(x, 2, sd, na.rm = na.rm)
x = sweep(x, 2, sx, "/")
}
if (missing(breaks) || is.null(breaks) || length(breaks) < 1) {
if (missing(col) || is.function(col))
breaks = 16
else breaks = length(col) + 1
}
if (length(breaks) == 1) {
if (!symbreaks)
breaks = seq(min(x, na.rm = na.rm), max(x, na.rm = na.rm),
length = breaks)
else {
extreme = max(abs(x), na.rm = TRUE)
breaks = seq(-extreme, extreme, length = breaks)
}
}
nbr = length(breaks)
ncol = length(breaks) - 1
if (class(col) == "function")
col = col(ncol)
min.breaks = min(breaks)
max.breaks = max(breaks)
x[x < min.breaks] = min.breaks
x[x > max.breaks] = max.breaks
if (missing(lhei) || is.null(lhei))
lhei = c(keysize, 4)
if (missing(lwid) || is.null(lwid))
lwid = c(keysize, 4)
if (missing(lmat) || is.null(lmat)) {
lmat = rbind(4:3, 2:1)
if (!missing(ColSideColors)) {
#if (!is.matrix(ColSideColors))
#stop("'ColSideColors' must be a matrix")
if (!is.character(ColSideColors) || nrow(ColSideColors) != nc)
stop("'ColSideColors' must be a matrix of nrow(x) rows")
lmat = rbind(lmat[1, ] + 1, c(NA, 1), lmat[2, ] + 1)
#lhei = c(lhei[1], 0.2, lhei[2])
lhei=c(lhei[1], side.height.fraction*ColSideColorsSize/2, lhei[2])
}
if (!missing(RowSideColors)) {
#if (!is.matrix(RowSideColors))
#stop("'RowSideColors' must be a matrix")
if (!is.character(RowSideColors) || ncol(RowSideColors) != nr)
stop("'RowSideColors' must be a matrix of ncol(x) columns")
lmat = cbind(lmat[, 1] + 1, c(rep(NA, nrow(lmat) - 1), 1), lmat[,2] + 1)
#lwid = c(lwid[1], 0.2, lwid[2])
lwid = c(lwid[1], side.height.fraction*RowSideColorsSize/2, lwid[2])
}
lmat[is.na(lmat)] = 0
}
if (length(lhei) != nrow(lmat))
stop("lhei must have length = nrow(lmat) = ", nrow(lmat))
if (length(lwid) != ncol(lmat))
stop("lwid must have length = ncol(lmat) =", ncol(lmat))
op = par(no.readonly = TRUE)
on.exit(par(op))
layout(lmat, widths = lwid, heights = lhei, respect = FALSE)
if (!missing(RowSideColors)) {
if (!is.matrix(RowSideColors)){
par(mar = c(margins[1], 0, 0, 0.5))
image(rbind(1:nr), col = RowSideColors[rowInd], axes = FALSE)
} else {
par(mar = c(margins[1], 0, 0, 0.5))
rsc = t(RowSideColors[,rowInd, drop=F])
rsc.colors = matrix()
rsc.names = names(table(rsc))
rsc.i = 1
for (rsc.name in rsc.names) {
rsc.colors[rsc.i] = rsc.name
rsc[rsc == rsc.name] = rsc.i
rsc.i = rsc.i + 1
}
rsc = matrix(as.numeric(rsc), nrow = dim(rsc)[1])
image(t(rsc), col = as.vector(rsc.colors), axes = FALSE)
if (length(rownames(RowSideColors)) > 0) {
axis(1, 0:(dim(rsc)[2] - 1)/max(1,(dim(rsc)[2] - 1)), rownames(RowSideColors), cex.axis=2, las = 2, tick = FALSE)
}
}
}
if (!missing(ColSideColors)) {
if (!is.matrix(ColSideColors)){
par(mar = c(0.5, 0, 0, margins[2]))
image(cbind(1:nc), col = ColSideColors[colInd], axes = FALSE)
} else {
par(mar = c(0.5, 0, 0, margins[2]))
csc = ColSideColors[colInd, , drop=F]
csc.colors = matrix()
csc.names = names(table(csc))
csc.i = 1
for (csc.name in csc.names) {
csc.colors[csc.i] = csc.name
csc[csc == csc.name] = csc.i
csc.i = csc.i + 1
}
csc = matrix(as.numeric(csc), nrow = dim(csc)[1])
image(csc, col = as.vector(csc.colors), axes = FALSE)
if (length(colnames(ColSideColors)) > 0) {
axis(2, 0:(dim(csc)[2] - 1)/max(1,(dim(csc)[2] - 1)), colnames(ColSideColors), cex.axis=1, las = 2, tick = FALSE)
}
}
}
par(mar = c(margins[1], 0, 0, margins[2]))
x = t(x)
cellnote = t(cellnote)
if (revC) {
iy = nr:1
if (exists("ddr"))
ddr = rev(ddr)
x = x[, iy]
cellnote = cellnote[, iy]
}
else iy = 1:nr
if( showHeatmap ){
image(1:nc, 1:nr, x, xlim = 0.5 + c(0, nc), ylim = 0.5 + c(0, nr), axes = FALSE, xlab = "", ylab = "", col = col, breaks = breaks, ...)
}else{
image(1, 1, matrix(0, nrow=1, ncol=1), xlim = 0.5 + c(0, nc), ylim = 0.5 + c(0, nr), axes = FALSE, xlab = "", ylab = "", col = col, breaks = breaks, ...)
}
retval$carpet = x
if (exists("ddr"))
retval$rowDendrogram = ddr
if (exists("ddc"))
retval$colDendrogram = ddc
retval$breaks = breaks
retval$col = col
if( showHeatmap ){
if (!invalid(na.color) & any(is.na(x))) { # load library(gplots)
mmat = ifelse(is.na(x), 1, NA)
image(1:nc, 1:nr, mmat, axes = FALSE, xlab = "", ylab = "",
col = na.color, add = TRUE)
}
}
axis(1, 1:nc, labels = labCol, las = 2, line = -0.5, tick = 0,
cex.axis = cexCol)
if (!is.null(xlab))
mtext(xlab, side = 1, line = margins[1] - 1.25)
axis(4, iy, labels = labRow, las = 2, line = -0.5, tick = 0,
cex.axis = cexRow)
if (!is.null(ylab))
mtext(ylab, side = 4, line = margins[2] - 1.25)
if (!missing(add.expr))
eval(substitute(add.expr))
if (!missing(colsep))
for (csep in colsep) rect(xleft = csep + 0.5, ybottom = rep(0, length(csep)), xright = csep + 0.5 + sepwidth[1], ytop = rep(ncol(x) + 1, csep), lty = 1, lwd = 1, col = sepcolor, border = sepcolor)
if (!missing(rowsep))
for (rsep in rowsep) rect(xleft = 0, ybottom = (ncol(x) + 1 - rsep) - 0.5, xright = nrow(x) + 1, ytop = (ncol(x) + 1 - rsep) - 0.5 - sepwidth[2], lty = 1, lwd = 1, col = sepcolor, border = sepcolor)
min.scale = min(breaks)
max.scale = max(breaks)
x.scaled = scale01(t(x), min.scale, max.scale)
if (trace %in% c("both", "column")) {
retval$vline = vline
vline.vals = scale01(vline, min.scale, max.scale)
for (i in colInd) {
if (!is.null(vline)) {
abline(v = i - 0.5 + vline.vals, col = linecol,
lty = 2)
}
xv = rep(i, nrow(x.scaled)) + x.scaled[, i] - 0.5
xv = c(xv[1], xv)
yv = 1:length(xv) - 0.5
lines(x = xv, y = yv, lwd = 1, col = tracecol, type = "s")
}
}
if (trace %in% c("both", "row")) {
retval$hline = hline
hline.vals = scale01(hline, min.scale, max.scale)
for (i in rowInd) {
if (!is.null(hline)) {
abline(h = i + hline, col = linecol, lty = 2)
}
yv = rep(i, ncol(x.scaled)) + x.scaled[i, ] - 0.5
yv = rev(c(yv[1], yv))
xv = length(yv):1 - 0.5
lines(x = xv, y = yv, lwd = 1, col = tracecol, type = "s")
}
}
# plot row dendrogram
if (!missing(cellnote))
text(x = c(row(cellnote)), y = c(col(cellnote)), labels = c(cellnote),
col = notecol, cex = notecex)
par(mar = c(margins[1], 0, 0, 0))
if (dendrogram %in% c("both", "row")) {
plot(ddr, horiz = TRUE, axes = FALSE, yaxs = "i", leaflab = "none")
}
else plot.new()
# plot col dendrogram
par(mar = c(0, 0, if (!is.null(main)) 5 else 0, margins[2]))
if (dendrogram %in% c("both", "column")) {
plot(ddc, axes = FALSE, xaxs = "i", leaflab = "none")
}else{
plot.new()
}
if (!is.null(main))
title(main, cex.main = 1.5 * op[["cex.main"]])
if (key) {
par(mar = c(5, 4, 2, 1), cex = 0.75)
tmpbreaks = breaks
if (symkey) {
max.raw = max(abs(c(x, breaks)), na.rm = TRUE)
min.raw = -max.raw
tmpbreaks[1] = -max(abs(x), na.rm = TRUE)
tmpbreaks[length(tmpbreaks)] = max(abs(x), na.rm = TRUE)
}
else {
min.raw = min(x, na.rm = TRUE)
max.raw = max(x, na.rm = TRUE)
}
z = seq(min.raw, max.raw, length = length(col))
image(z = matrix(z, ncol = 1), col = col, breaks = tmpbreaks,
xaxt = "n", yaxt = "n")
par(usr = c(0, 1, 0, 1))
lv = pretty(breaks)
xv = scale01(as.numeric(lv), min.raw, max.raw)
axis(1, at = xv, labels = lv)
if (scale == "row")
mtext(side = 1, "Row Z-Score", line = 2)
else if (scale == "column")
mtext(side = 1, "Column Z-Score", line = 2)
else mtext(side = 1, KeyValueName, line = 2)
if (density.info == "density") {
dens = density(x, adjust = densadj, na.rm = TRUE)
omit = dens$x < min(breaks) | dens$x > max(breaks)
dens$x = dens$x[-omit]
dens$y = dens$y[-omit]
dens$x = scale01(dens$x, min.raw, max.raw)
lines(dens$x, dens$y/max(dens$y) * 0.95, col = denscol,
lwd = 1)
axis(2, at = pretty(dens$y)/max(dens$y) * 0.95, pretty(dens$y))
title("Color Key\nand Density Plot")
par(cex = 0.5)
mtext(side = 2, "Density", line = 2)
}
else if (density.info == "histogram") {
h = hist(x, plot = FALSE, breaks = breaks)
hx = scale01(breaks, min.raw, max.raw)
hy = c(h$counts, h$counts[length(h$counts)])
lines(hx, hy/max(hy) * 0.95, lwd = 1, type = "s",
col = denscol)
axis(2, at = pretty(hy)/max(hy) * 0.95, pretty(hy))
title("Color Key\nand Histogram")
par(cex = 0.5)
mtext(side = 2, "Count", line = 2)
}
else title("Color Key")
}
else plot.new()
retval$colorTable = data.frame(low = retval$breaks[-length(retval$breaks)],
high = retval$breaks[-1], color = retval$col)
invisible(retval)
}
The part that calls the function
# Read in data, select samples
df_hmr_recurrent_full = read.delim(fn_hmr_recurrent, sep='\t', header=T, check.names=F)
df_hmr_recurrent = df_hmr_recurrent_full
samples_plot = intersect(sample_ids_wgbs,colnames(df_hmr_recurrent))
mat_hmr_recurrent_full = as.matrix(df_hmr_recurrent_full[,samples_plot])
mat_hmr_recurrent_full[is.nan(mat_hmr_recurrent_full)] = NA
m = match.idx( dimnames(mat_hmr_recurrent_full)[[2]], samples_cmp )
col=rep("grey", 100)
col[m$idx.A] = "blue"
#m = match.idx( dimnames(mat_hmr_recurrent_full)[[2]], samples_tscnc )
#col[m$idx.A] = "gold"
m = match.idx( dimnames(mat_hmr_recurrent_full)[[2]], dimnames(tumorpurity)[[1]] )
df_meth = data.frame(
median = colMedians( mat_hmr_recurrent_full, na.rm=TRUE ),
mean = colMeans( mat_hmr_recurrent_full, na.rm=TRUE ),
purity=tumorpurity$Tumor.Purity.Comp[m$idx.B],
color=col,
stringsAsFactors=FALSE)
df_meth = df_meth[order(df_meth$median),]
#barplot(df_meth$median, col=df_meth$color)
#boxplot( df_meth$median~df_meth$color, names=c("CMP", "non-CMP"), main="median methylation level", ylim=c(0, 60), las=1)
# According to the variance is to filter the HMR of the height change
# restrict to the top 10% of variability in HMR by standard deviation
sds = apply(df_hmr_recurrent[,samples_plot],1,sd)
rows_top_decile = sds >= quantile( sds, 0.9, na.rm=T )
rows_top_decile[ is.na(rows_top_decile) ] = FALSE
df_hmr_recurrent = df_hmr_recurrent[rows_top_decile,]
mat_hmr_recurrent = as.matrix(df_hmr_recurrent[,samples_plot])
gr = makeGRangesFromDataFrame(df_hmr_recurrent)
cgi = rep('white',dim(mat_hmr_recurrent)[1])
# rsidebar设置为白色，因为不需要放
rsidebar = t(matrix(cgi))
# toplot is the data used to draw the graph
toplot = data.frame(samples_plot)
toplot$ERG = allele_effect('ERG')$alleles[samples_plot,'activating_sv']
toplot$ETV1 = allele_effect('ETV1')$alleles[samples_plot,'activating_sv']
toplot$ETV4 = allele_effect('ETV4')$alleles[samples_plot,'activating_sv']
toplot$ETV5 = allele_effect('ETV5')$alleles[samples_plot,'activating_sv']
toplot$CHD1 = allele_effect('CHD1')$alleles[samples_plot,'n_alleles_inactivated']==2
toplot$SPOP = allele_effect('SPOP')$alleles[samples_plot,'inactivating_missense']
toplot$RB1 = allele_effect('RB1')$alleles[samples_plot,'n_alleles_inactivated']==2
toplot$PTEN = allele_effect('PTEN')$alleles[samples_plot,'n_alleles_inactivated']==2
toplot$MYC = allele_effect('MYC')$alleles[samples_plot,'CNA_amp']
toplot$TP53 = allele_effect('TP53')$alleles[samples_plot,'n_alleles_inactivated']==2
CMP = samples_plot %in% samples_cmp
ETS = toplot$ERG|toplot$ETV1|toplot$ETV4|toplot$ETV5
CHD1_SPOP = toplot$CHD1 | toplot$SPOP
PTEN = toplot$PTEN
RB1 = toplot$RB1
TP53 = toplot$TP53
MYC = toplot$MYC
Mutation = samples_plot %in% c(samples_braf,samples_idh1,samples_tet2,samples_dnmt3b)
Sites = metastasis_locations[samples_plot]
print(fisher.test(CMP,ETS))
print(fisher.test(CMP,TP53))
print(fisher.test(CMP,MYC))
print(fisher.test(CMP,Mutation))
print(fisher.test(CMP,Sites))
# colside here is the default color white, and then replace the colors in order
colside = rep('white',dim(mat_hmr_recurrent)[2])
names(colside) = colnames(mat_hmr_recurrent)
stopifnot(length(colside)==length(samples_plot))
tSCNC = colside
tSCNC[samples_tscnc] = 'gray30'
stopifnot(length(tSCNC)==length(samples_plot))
ETS = colside
ETS[toplot$ERG] = 'gray30'
ETS[toplot$ETV1] = 'gray30'
ETS[toplot$ETV4] = 'gray30'
ETS[toplot$ETV5] = 'gray30'
stopifnot(length(ETS)==length(samples_plot))
MYC = colside
MYC[toplot$MYC] = 'gray30'
stopifnot(length(MYC)==length(samples_plot))
SPOP = colside
SPOP[toplot$SPOP] = 'gray30'
stopifnot(length(SPOP)==length(samples_plot))
RB1 = colside
RB1[toplot$RB1] = 'gray30'
stopifnot(length(RB1)==length(samples_plot))
PTEN = colside
PTEN[toplot$PTEN] = 'gray30'
stopifnot(length(PTEN)==length(samples_plot))
TP53 = colside
TP53[toplot$TP53] = 'gray30'
stopifnot(length(TP53)==length(samples_plot))
CMP = colside
CMP[samples_cmp] = 'white'#'lightsteelblue'
CMP[samples_braf] = 'orange'
CMP[samples_idh1] = 'green4'
CMP[samples_tet2] = 'purple'
CMP[samples_dnmt3b] = 'deeppink'
#CMP['DTB-252-BL'] = 'black'
stopifnot(length(CMP)==length(samples_plot))
Site = colside
Site[intersect(names(metastasis_locations)[metastasis_locations=='Bone'],samples_plot)] = wes_palette('Chevalier1')[1] #darkgreen
Site[intersect(names(metastasis_locations)[metastasis_locations=='Lymph_node'],samples_plot)] = wes_palette('Chevalier1')[2] #gold
Site[intersect(names(metastasis_locations)[metastasis_locations=='Liver'],samples_plot)] = wes_palette('Chevalier1')[4] #brown
Site[intersect(names(metastasis_locations)[metastasis_locations=='Other'],samples_plot)] = wes_palette('Chevalier1')[3] #gray
purity = colside
purity[tumorpurity[colnames(mat_hmr_recurrent),'Tumor.Purity.Histo']<50] = 'black'
stopifnot(length(purity)==length(samples_plot))
# This is a matrix of clinical information colors
csidebar = data.matrix(cbind(Site,CMP,tSCNC,TP53,RB1,PTEN,MYC,ETS) )
color = colorRampPalette(c('blue','white','red'))(n = 1000)
# Clustering and distance calculation methods will be entered in the function
hclust2 = function(x, method="average") {
hclust(x, method=method)
}
dist2 = function(x) {
as.dist(1-cor(t(x), method="spearman"))
}
dimnames(csidebar)[[2]][2] = "Select muts."
main_title = ""
fn_figure1b_noheat = '/notebook/human_sequence_prostate_WGBS/reproduce/WCDT_WGBS/figures/figure_S4.pdf'
pdf( fn_figure1b_noheat, height=12, width=9)
h=heatmap.3(mat_hmr_recurrent,
showHeatmap=FALSE,
hclustfun=hclust,
distfun=dist,
na.rm=TRUE,
scale='none',
dendrogram="column", margins=c(8,1),
Rowv=TRUE, Colv=TRUE,
ColSideColors=csidebar,
RowSideColors=rsidebar,
symbreaks=FALSE,
key=FALSE,
symkey=FALSE,
lhei=c(1,5),
lwid=c(0.75,4),
cexCol=0.5,
cexRow=1,
density.info="none", trace="none",
labCol=colnames(mat_hmr_recurrent),
labRow=rep("",(dim(mat_hmr_recurrent)[1])),
main=main_title, col=color,
ColSideColorsSize=8, RowSideColorsSize=1)
dev.off()
fn_figure1b = '/notebook/human_sequence_prostate_WGBS/reproduce/WCDT_WGBS/figures/figure_1b.pdf'
pdf( fn_figure1b, height=12, width=9)
h=heatmap.3(mat_hmr_recurrent,
showHeatmap=TRUE,
hclustfun=hclust,
distfun=dist,
na.rm=TRUE,
scale='none',
dendrogram="column", margins=c(8,1),
Rowv=TRUE, Colv=TRUE,
ColSideColors=csidebar,
RowSideColors=rsidebar,
symbreaks=FALSE,
key=FALSE,
symkey=FALSE,
lhei=c(1,5),
lwid=c(0.75,4),
cexCol=0.5,
cexRow=1,
density.info="none", trace="none",
labCol=colnames(mat_hmr_recurrent),
labRow=rep("",(dim(mat_hmr_recurrent)[1])),
main=main_title, col=color,
ColSideColorsSize=8, RowSideColorsSize=1)
dev.off()Reference
Zhao S G , Chen W S , Li H , et al. The DNA methylation landscape of advanced prostate cancer[J]. Nature Genetics, 2020.
Original code
https://github.com/DavidQuigley/WCDT_WGBS/blob/master/scripts/2019_05_15_WGBS_figure_1B.R
